How to adjust the Javelin AIWB


When you open your package, you will have all your contents in our bag.


Make sure when you're making adjustments to your holster that the firearm is cleared and safe.


If you need to adjust the height of the Concealment Claw Arm, get the taller arm out of the bag.


The Nut may fall out the back when removing the Claw, make sure you put it back in the slot on the backside of the Claw Arm.


Tighten the screw.


To swap out the FOMI Belt Clip to the Tuckable Inside The Waistband Belt Clips, take them out of the Bag.


All the hardware not including the FOMI Belt Clip will be used for the Tuckable Inside The Waistband Clips.


Insert one of the posts into the holes.


Insert the other post next to the first post hole.


Repeat on the other side.


Insert two of them into the Tuckable Inside The Waistband Claw.


Repeat on the other side.


To adjust the cant of the FOMI Belt Clip, remove the two screws from the Clip.


Inside of the bag you will have your holster pre installed with the FOMI Belt Clip and the smaller Concealment Claw, a bag with the bigger (taller) Concealment Claw and the Tuckable Inside The Waistband Belt Clips


If you feel that your retention is to tight or loose, adjust these two Retention Screw with a Phillips head screw driver. Righty tighty, lefty loosey.


Loosen the screw and pull off the Claw Arm.


Insert the bigger Claw Arm into the holes of the Claw.


Now you have the taller Claw Arm on the Holster.


Loosen the two screws on the FOMI Belt Clip.


Remove all the hardware out of the bag.


Place one of the washers onto the post to hold it into place.


Place the other washer onto the post.


Insert the screw into the finishing washer.


Tighten the Tuckable Inside the Waistband Claw.

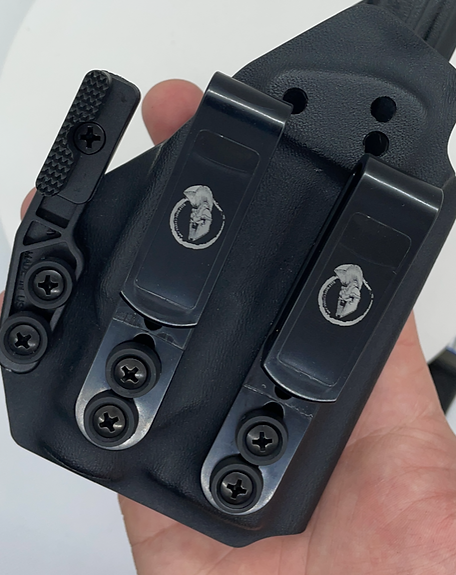

To adjust the cant of the Claws, insert one of the Claws lower then the other one to fit you better.


Remove the post and washer and insert it into the top hole and screw the FOMI Clip back on.
